Reactor Vessel Internal Wedge Wire Screen for Chemical Plant

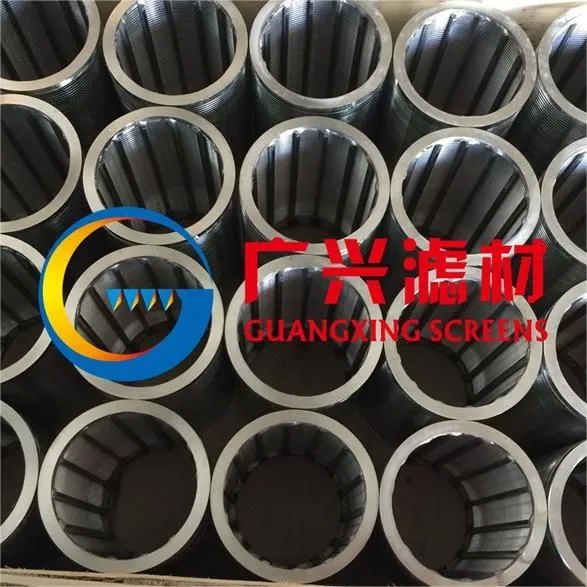

Internal Axial Wedge Wire Screens are supplied in cylinder form with the following specification and detailed components.
304 Axial Slot Wedge Wire
304 SS Material.
400 mm. OAL (Overall Length) x OD 423 Nominal screen x ID 400 Nominal screen.
Profile Wire Width 3.5 mm. x height 5.3 mm. Slot 0.5 mm.
Support Rod Diameter 6 mm., support pitch @ 10 mm. centre to centre
(Equivalent to 41 round support rods)
Square cut ends & fitted with 4 off 19 x 10 solid bars @ 90 degrees apart.
Welded screen wedge wire - Mat. 304
dimensions 800 x 1200 mm
curved length at internal radius = 1146,6 mm over 60 included angle
2no with slot opening:3 mm
1no with Slot opening:1.5 mm
Welded screen (wedgewire type)Mat. 304
dimensions 600 x 800 mm
curved length at internal radius = 1146,6 mm over 60 included angle
1no with slot opening:2.0 mm
2no with Slot opening:1.3 mm

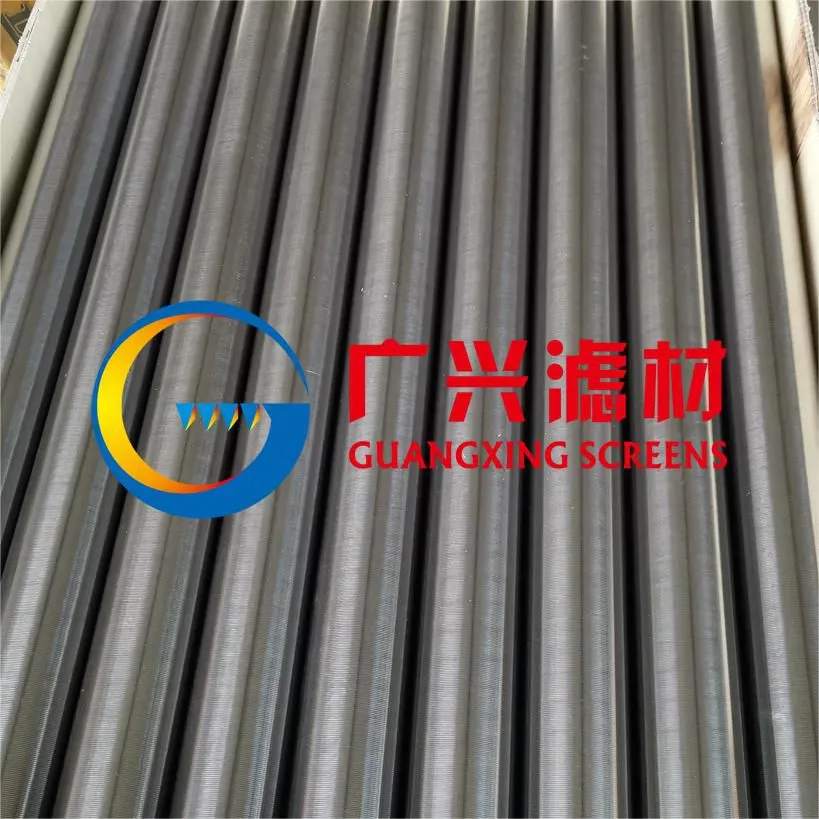

The Stainless Steel Internal Axial Wedge Wire Filter is used for water re-using filtration system. It is also used in various retaining and filtering fields.
This kind of ss wedge wire is to designed to be used for systems of reused the water from the bath and shower into normal toilet. By using this filtration system, a second life is given to that water. The filtration systems are used to eliminate any kind of residue like hair, soap particles. The stainless steel wedge wire cylinder will work as the cartridge filter squeezing inside a filter housing. Popular filter ratings are 0.25 mm (250 micron) and 0.50 mm (500 micron).
Vessel Internal Wedge Wire Screen Cylinder
Shape: Cylinder
Flow: In to out
Material: 316 Stainless steel
Inner Diameter: 10 cm
Length: 25 cm
Slot Width: 0.05 mm/50 microns
Profile: Alternating inverted and upright triangles or just normal triangular(cross section)
Ends: Closed with a 5 cm diameter hole in the center for piping purposes on one end and open on the other
