Wedge Wire Candle Filter: The Ultimate Industrial Filtration Solution

Wedge Wire Candle Filter: The Ultimate Industrial Filtration Solution

In high-demand industrial filtration—from food & beverage and pharmaceuticals to water treatment, chemical processing, and oil & gas—wedge wire candle filter cartridges stand out as a durable, high-efficiency, and cost-effective solution. Also known as V-wire candle filters or wedge wire filter candles, these cylindrical filtration elements combine precision engineering, robust construction, and exceptional performance to meet the strictest separation requirements.

What Is a Wedge Wire Candle Filter?

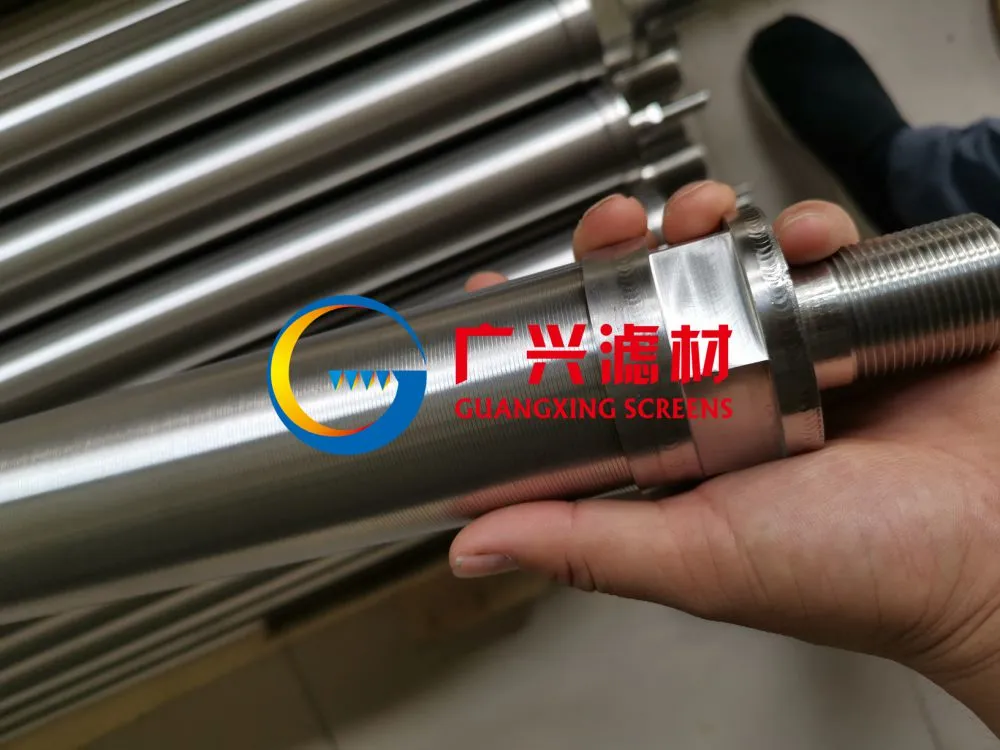

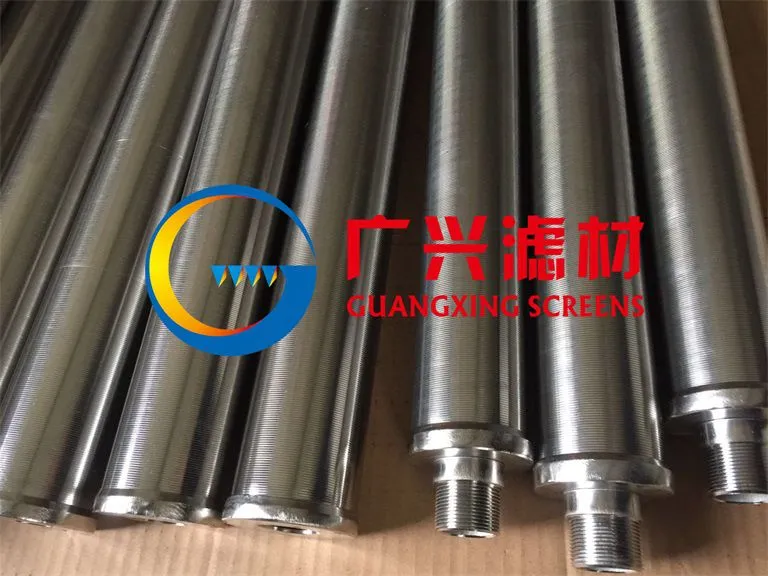

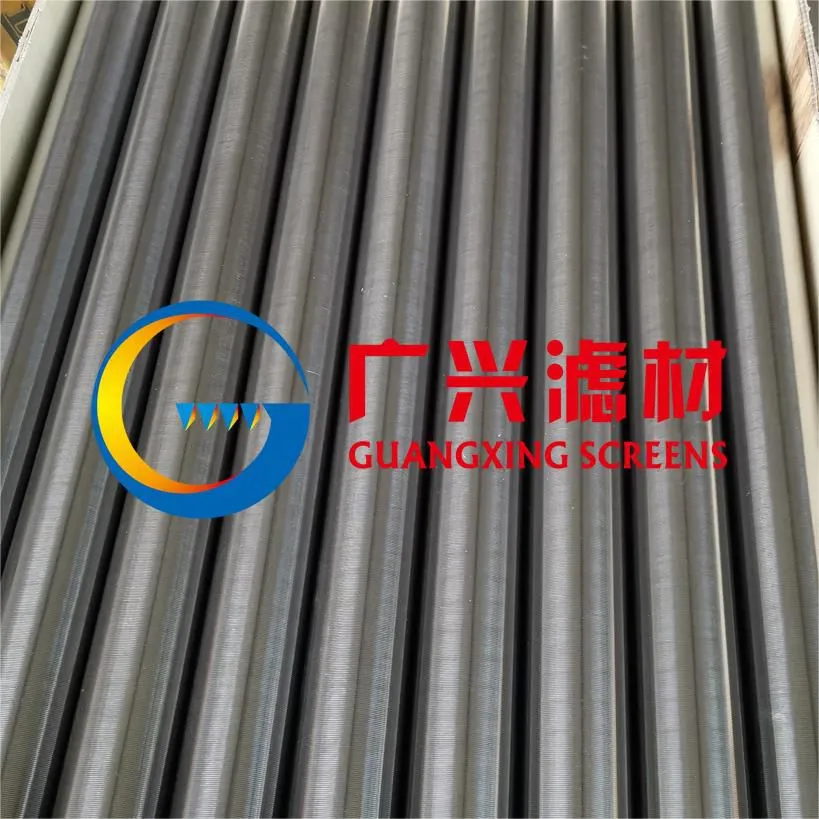

A wedge wire candle filter is a long, cylindrical filter element made by helically winding V-shaped (wedge) profile wire around longitudinal support rods, with full resistance welding at every intersection. This all-welded structure creates uniform, continuous slot openings and a rigid, pressure-resistant cartridge that resembles a candle—hence the name “candle filter.”

Unlike disposable filter bags, melt-blown cartridges, or mesh screens, wedge wire candle filters are reusable, backwashable, and built for long service life in harsh operating conditions.

Core Advantages of Wedge Wire Candle Filters

1. Precision Filtration & Non-Clogging Design

• Slots range from 10 to 3,000 microns for accurate particle retention

• Outer-narrow & inner-wide slot geometry prevents particles from wedging

• Excellent self-cleaning performance reduces downtime and maintenance

• Stable filtration efficiency across repeated cycles

2. High Strength & Longevity

• All-welded stainless steel construction withstands high differential pressure

• Resists abrasion, corrosion, and thermal shock

• No fiber shedding, no media migration, no breakage

• Service life up to 5–10 years with proper maintenance




3. High Flow & Low Pressure Drop

• Large open area boosts throughput while lowering energy consumption

• Smooth outer surface minimizes flow resistance

• Ideal for high-flow, continuous-operation filtration systems

4. Sanitary & Easy to Clean

• Smooth, crevice-free surface meets food-grade, pharmaceutical, and drinking water standards

• Compatible with backwashing, CIP (clean-in-place), and chemical cleaning

• Suitable for diatomaceous earth (DE) pre-coat filtration

5. Full Customization

• Materials: 304, 316L, 2205 duplex stainless steel

• Diameter, length, slot size, and end connections fully customizable

• End fittings: flanged, threaded, hub-type, quick-connect, open-end

•


Typical Applications

• Food & Beverage: beer, wine, juice, syrup, edible oil, dairy filtration

• Pharmaceuticals: sterile water, infusion solutions, raw material purification

• Water Treatment: industrial process water, boiler feed water, wastewater, groundwater

• Chemicals: solvents, resins, paints, coatings, petrochemical liquids

• Oil & Gas: produced water, cooling water, pipeline protection

• Mining & Minerals: slurry dewatering, leachate filtration

How to Select the Right Wedge Wire Candle Filter

1. Filtration accuracy: Choose slot size based on target particle size

2. Flow rate & pressure: Match diameter and length to system capacity

3. Medium compatibility: Select material for corrosion & temperature resistance

4. Installation space: Confirm vessel dimensions and end connections

5. Cleaning method: Backwash, CIP, or manual cleaning

Our After-Sales Service for Candle Filters

We stand behind every wedge wire candle filter with comprehensive after-sales support to ensure stable operation and maximum lifespan:

• 12-month warranty against manufacturing defects

• 24/7 online technical support & troubleshooting

• On-site installation, commissioning, and operator training

• Custom spare parts and fast global delivery

• Regular maintenance guidance and inspection services

• Refurbishment and reconditioning to extend service life

Conclusion

Wedge wire candle filters represent the future of sustainable, high-performance industrial filtration. They replace disposable filters, cut operating costs, improve product quality, and reduce downtime—making them the top choice for critical processes worldwide.

Whether you need standard cartridges or fully customized solutions, we provide professional design, reliable manufacturing, and trusted after-sales service to support your success.

Contact us today to discuss your filtration needs and get a tailored solution.
