Wedge Wire Filter Elements for Oil Field and Mining-in Stainless, MONEL, HAST-C & DUPLEX SS, FOTI

GuangXing suplies wedge wire filter elements used as sieves and filters for various industries, especially suitable for low maintenance applications. It is a type of metal filter component fabricated from Slot Opening Wedge Wire. Wedge wire elements have four metarials options: SS, MONEL, HAST-C & DUPLEX SS.

Atlas filter elements can be re-used repeatedly.

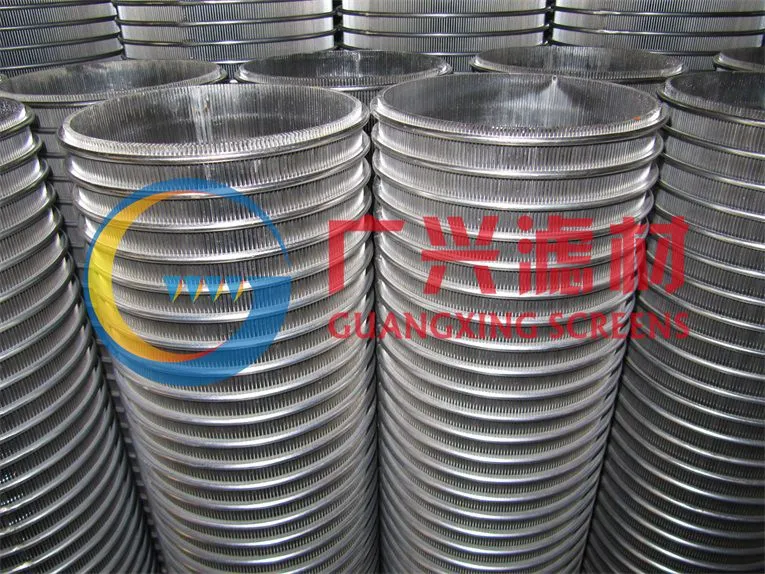

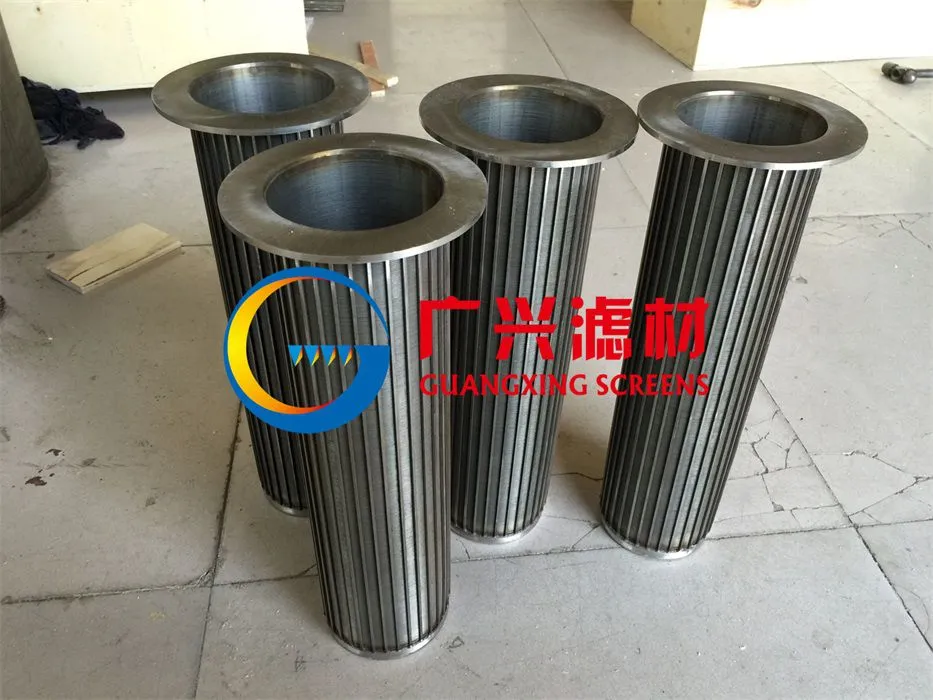

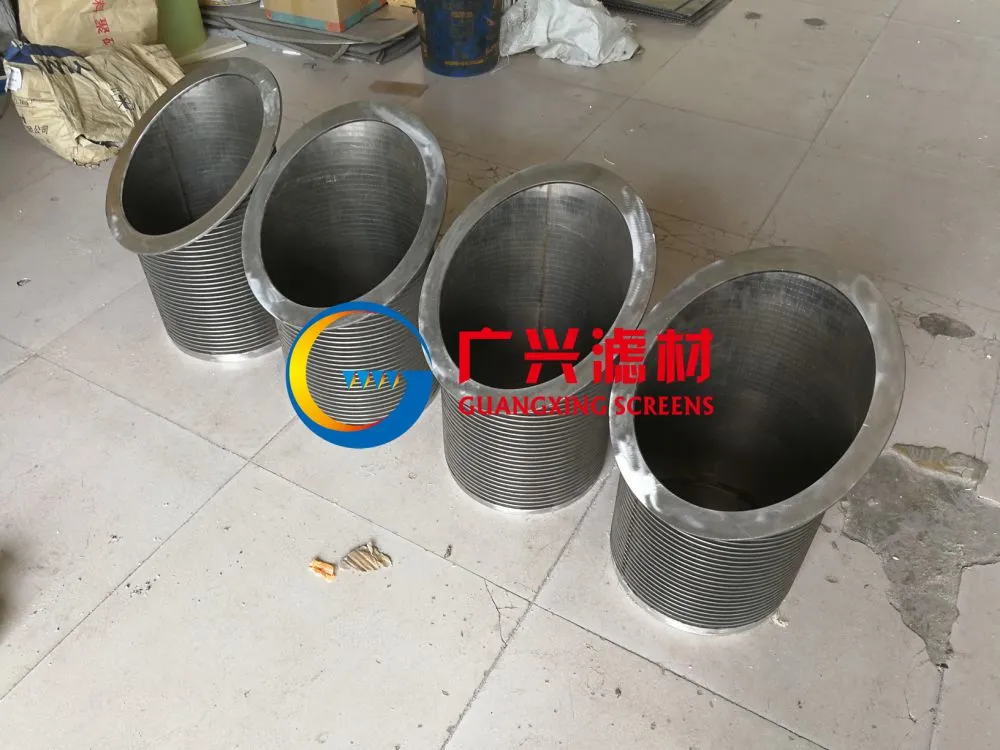

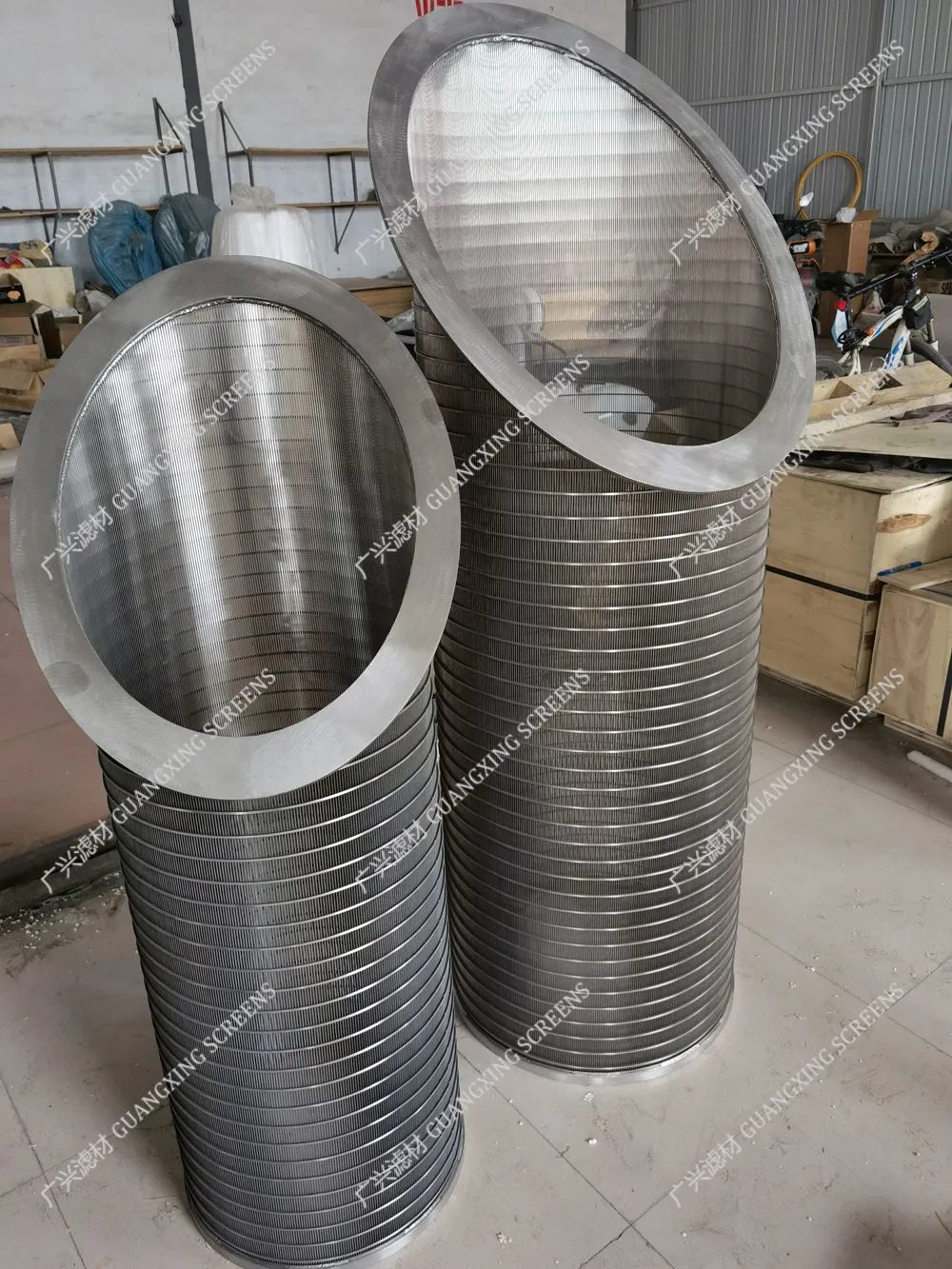

Available in the forms of tubes, panels, filter cylinders, cone, basket and bags and special filter elements. It is made by welding with profile wire on every connection spots. The Stainless Steel material and its special welding structure bring excellent filtration property.

Compared with weave wire mesh filter parts, Atlas wedgewire filter elements have many advantages:
Good strength;
High rigidity;
Good resistance to abrasion and corrosion;
Uniform gap;
Flat panel surface;
Good in filtration and fluidity;
Easy to clean and back wash;
Long work time.

Application
Wedgewire filters are used in filter of petroleum, chemical industry, pharmaceutics, food and beverage, metallurgy and coal, filtration of water treatment. Wedge wire elements are the most popular mining screen due to its strength.

Wedge wire filter elements for oil field equipment & spares
Service conditions:
Fluid: Oil emulsion(consists of 40% saline water and 60% crude oil)
Viscosity @ oper.
Temp = 3160 cps Density @ Oper.
Temp = 961 kg/m3 Flow
Rate = 354.16 m3/h
Working temperature= (min./ Nor. / Max.) = 25/35/50
Deg.C Pressure drop across clean filter <5 Kpa
Max. allowable pressure drop= 50 Kpa
Slot size= 0.23 mm
Selected:elements

Radial slot opening
Slot size = 0.23 mm
Wire width = 0.75 or 1.0 mm
Outside diameter = 30 mm
Length= 1000 mm
Max. Delta P 4.2 Bard
Material: AISI 316L
Condition -clean pressure drop <5 kpa

Wire wedge filter media for filtration 200 micron, 300 micron:
Material: SS304
Slot: 200 micron & 300 micron

Material: Stainless Steel AISI 304
Slot size: 760 micron
Wire size: 60V or 47V.
Note: Welding and construction of both ends of the elements can be changed to reduce cost or optimize production, however fitting dimensions cannot be changed.

FOTI Filter Elements with Reinforcement
0,1 mm FOTI elements with integrated (welded) reinforcement at both ends (Double Open End).

Outside diameter of filter element 60-70 mm (outer diameter of reinforcement is to be exact 70 mm).
That reinforcement is to protect elements when they are manually cleaned outside the housing.
