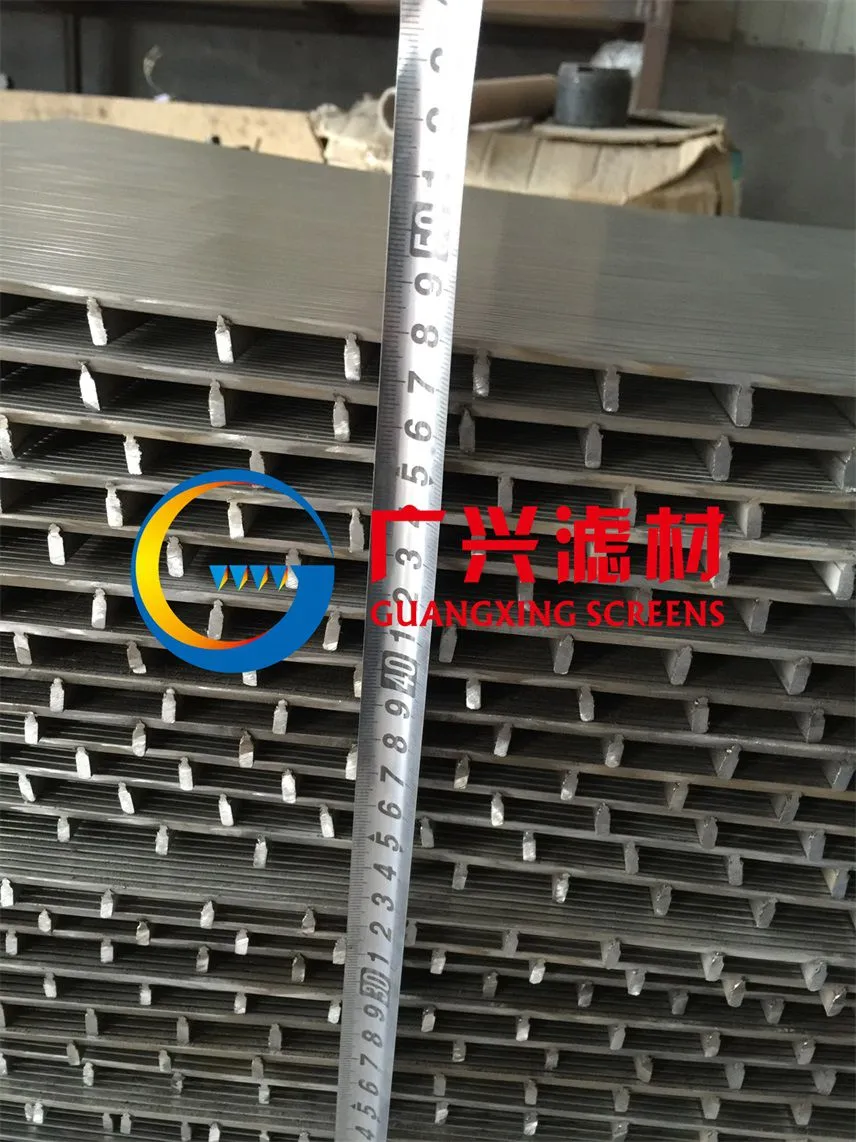

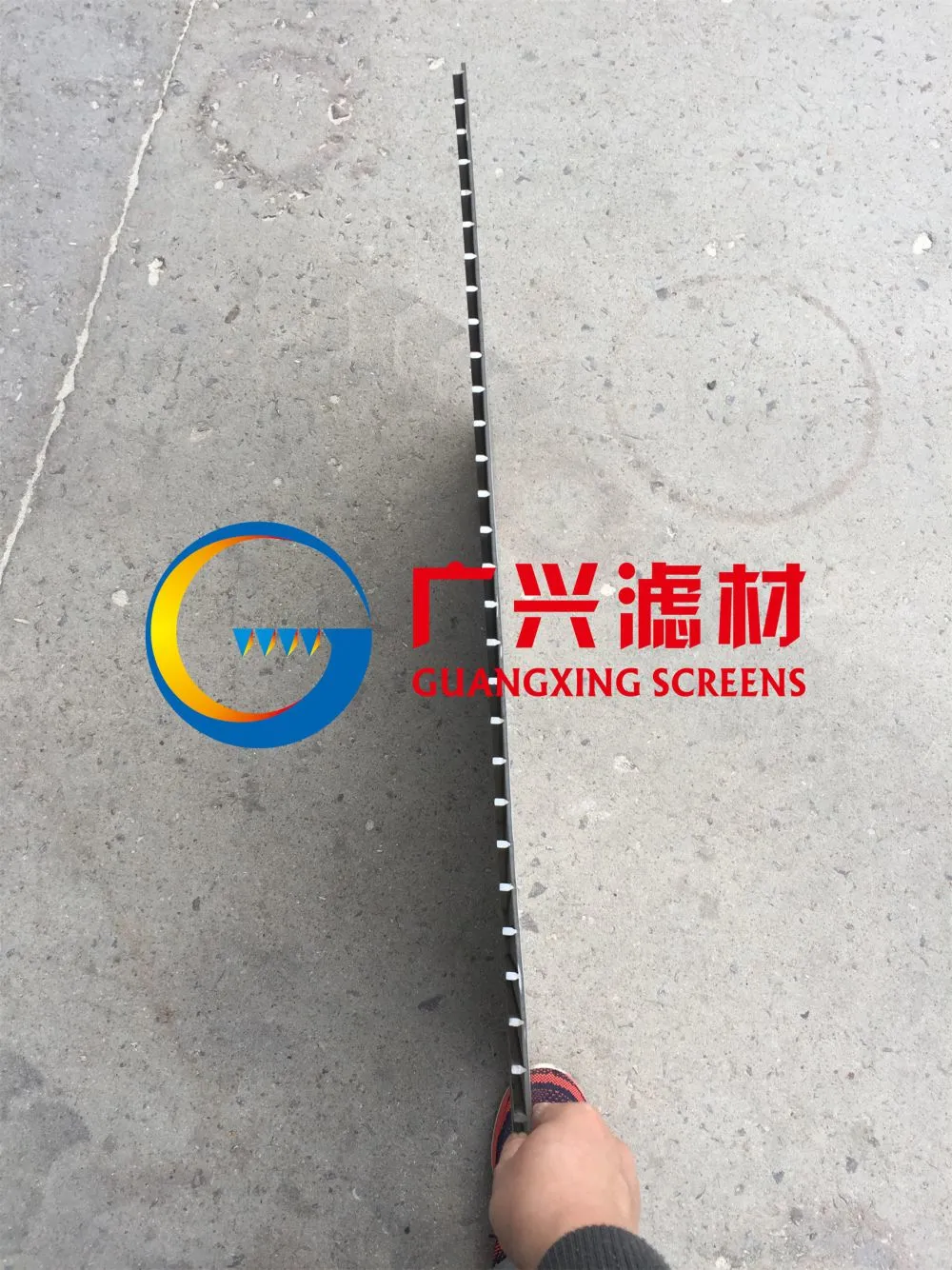

Stainless Steel Wedge Wire Grilles for Architectural Decoration - SS Circular Grilles and Flat Grill
Stainless steel curved Grille (50% free area)
4 equal quadrants of grille fixed via a continuous angle back to bracket.
Free area/performance 50%
50% perforated metal curved sheeting
4 equal quadrants fixed to back of SS Grille
Free area/performance to requirements
Wedgewire slot Grille & perforated metal fully accessible for cleaning.
SS Sleeve, the internal diameter to suit schedule
Continuous vertical angle fixed back to packer and bracket to allow fixing
Continuous vertical packing piece between bracket and angles
Cladding fixing brackets
Fixed back to Column at 600 centres
Sized to support cladding and diameter per required
Structural Column
SS section fixed back to cladding bracket
The design for the decorative metal grilles is as follows:
- Grille design - Slots to run horizontally.
- The Stainless steel grille is to provide 50% free area for the movement of air.
- The grill is to be fabricated in solid stainless grade 304 sections with a 240grit brush finish; grain of finish to run with the long horizontal length of the steel.

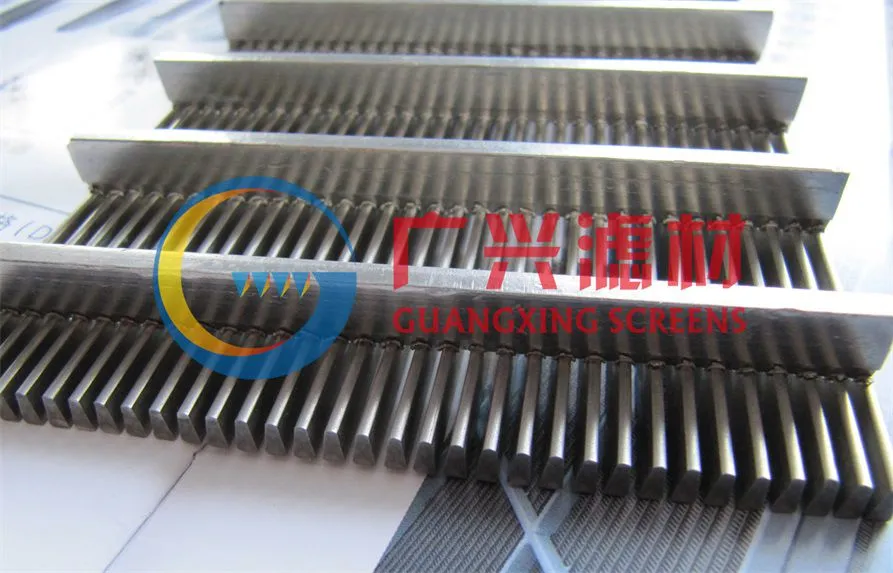

- Rods are to be welded to the rear face of the profiles and to run vertically set out with 50mm centres.
- The ends of the panels are to have a closure strip secretly welded to the profiles at the outside edge. The strip (20x2mm 304 grade Stainless steel) is to sit proud of the horizontal profiles by 2-3mm.
- On the rear face of the metal grill is to be a powder coated perforated metal panel. Perforated panel is to be fixed to the wedge wire metal grill via a mechanical fix to rods.
- Fabrication method should ensure a consistent parallel gap and tangential grid between Rods and profiles.
- Distance between back face of profiles and perforate panel is set by air pressure requirements.
- Wane panels will not be accepted.
- All panels will be subject to approval
