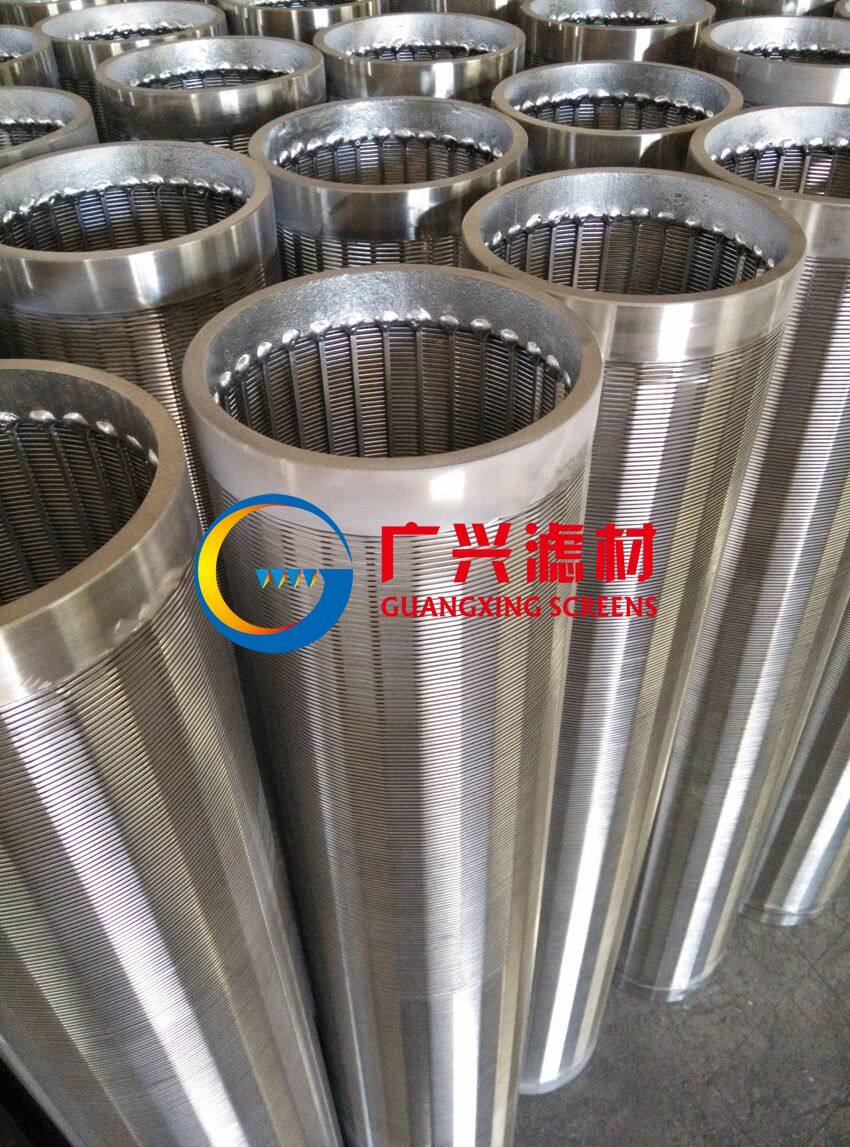

Re-rolled Screen with the Welded Bar and Micron Slot Size for Sand Control in water wells
This type of wedge wire well screen has a re-rolled construction. The spacing or gap between the support rod is precise. The sizes of the wire diameter and the rod depend on the depth of the well. The wire is v shaped axial wire, the support rod can be round, triangle shape. Axial wire diameters: 0.1mm, 0.25mm, 0.5mm, 0.75mm, 1.00mm.
Reverse rolled wedge wire screen materials can be low carbon galvanized (LCG) and stainless steel (SS).
The well screen's OD outside diameter is decided by the ID of the well and the casing pipe, the ID of the screen depends on the pump. The connection of the well screen is welding or thread.The unit length of the reverse rolled well screen is 2.9m or 5.8m. The carbon steel screen is galvanized to prolong the life of the screen.
Wedge wire re-rolled screen for filter sand from water.
The re-rolled screen around 10 feet long with a 12 inch diameter opening. The wedge wire screen needs to be 4 feet wide by 8 feet long. Wedge dimensions 1/16 inch wide by ¼ inch long with a 13° bend in it.
