Wedge Wire Pipe Well Screen, Stainless Steel Wedge Wire Screen Pipe, Filter Pipe Screen
We export wedge wire pipe elements materials as per clients requirements. Wedge profile wire and the longitudinal support rods together forms a pipe filter suitable for well screen. So wedge wire pipe well screen has sturdy construction and good mechanical property. It is used to prevent sands from entering the water.
Structure of Wedge Wire Pipes:
The V wire is welded to the rods and produces a rigid unit that has high strength and minimum weight.
The V-shape section plane can avoid blockage and make sure of the unimpeded water. The consecutive slot has more open area, and it can reduce the speed of the water entering to avoid the sand entering the pipes under the great pressure, so it can filter sand better. Meanwhile, the slot of wedge wire pipe can change according to the real condition of the earth.
Wedge wire pipe screen is a kind of water filter tubing which can be used with the deep well pump, water diving pump, also may used in the water-treating equipment, the environmental protection, the water desalination treatment, running water treatment, water softening treatment, the petroleum industry.

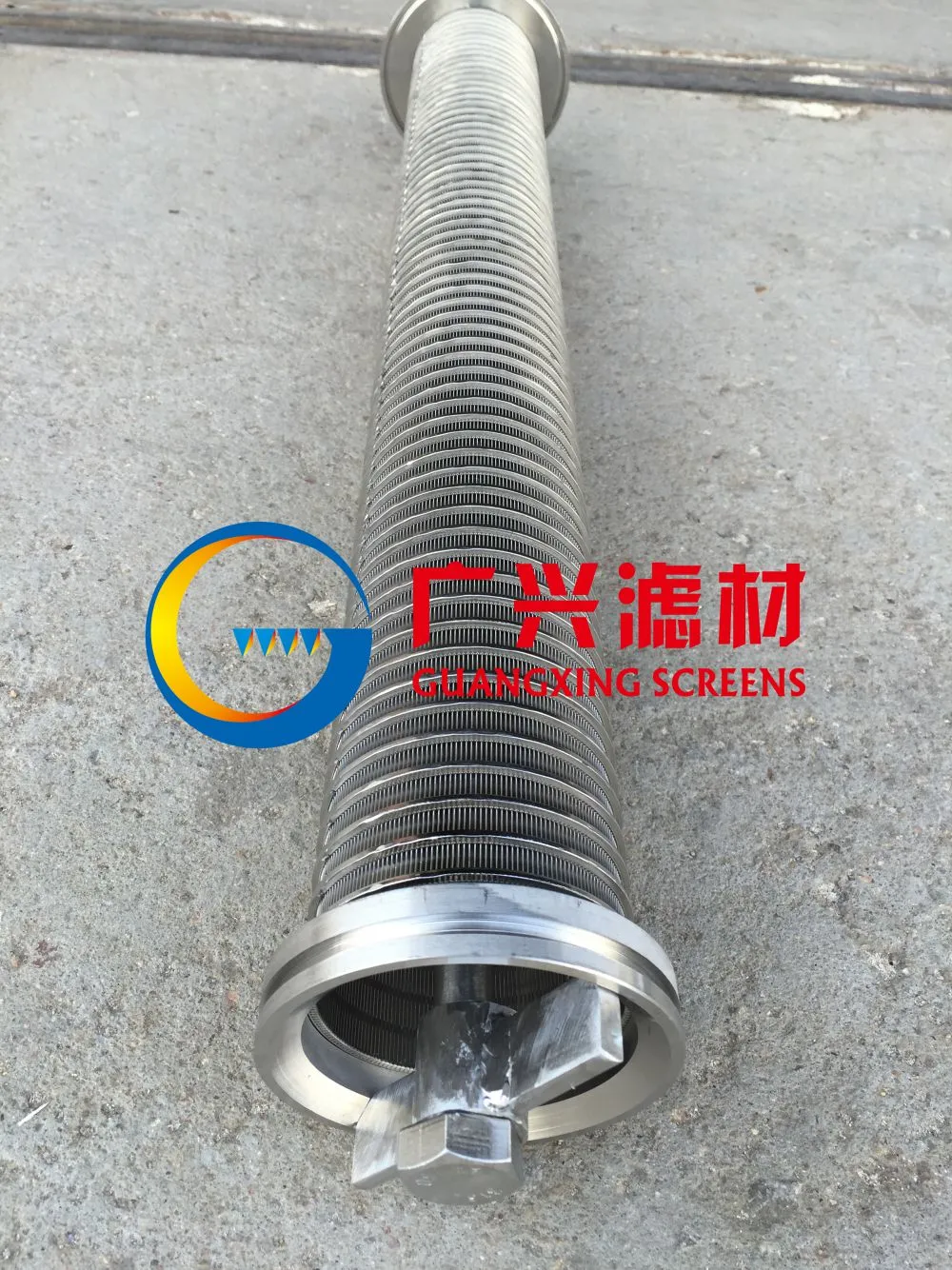

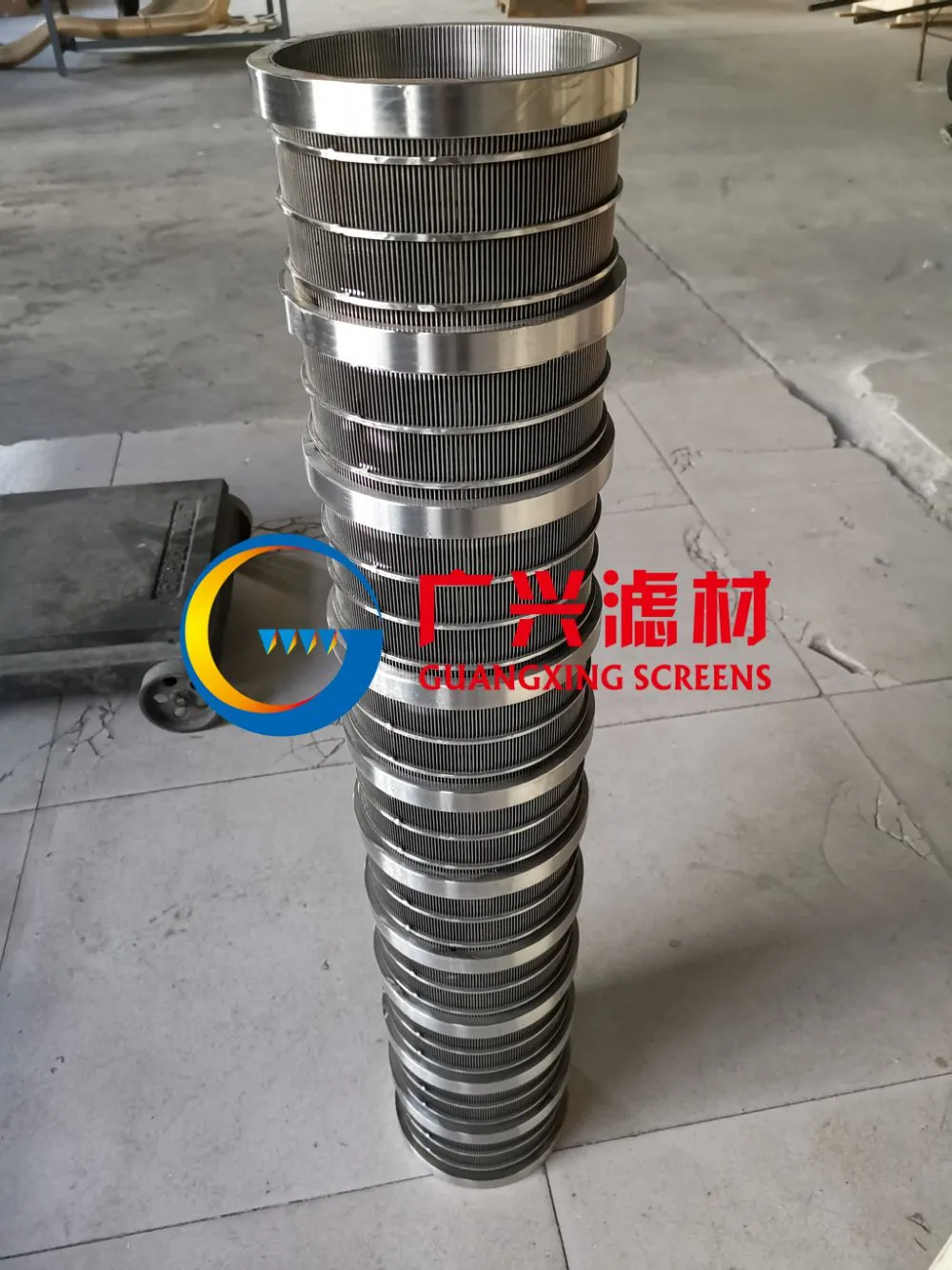

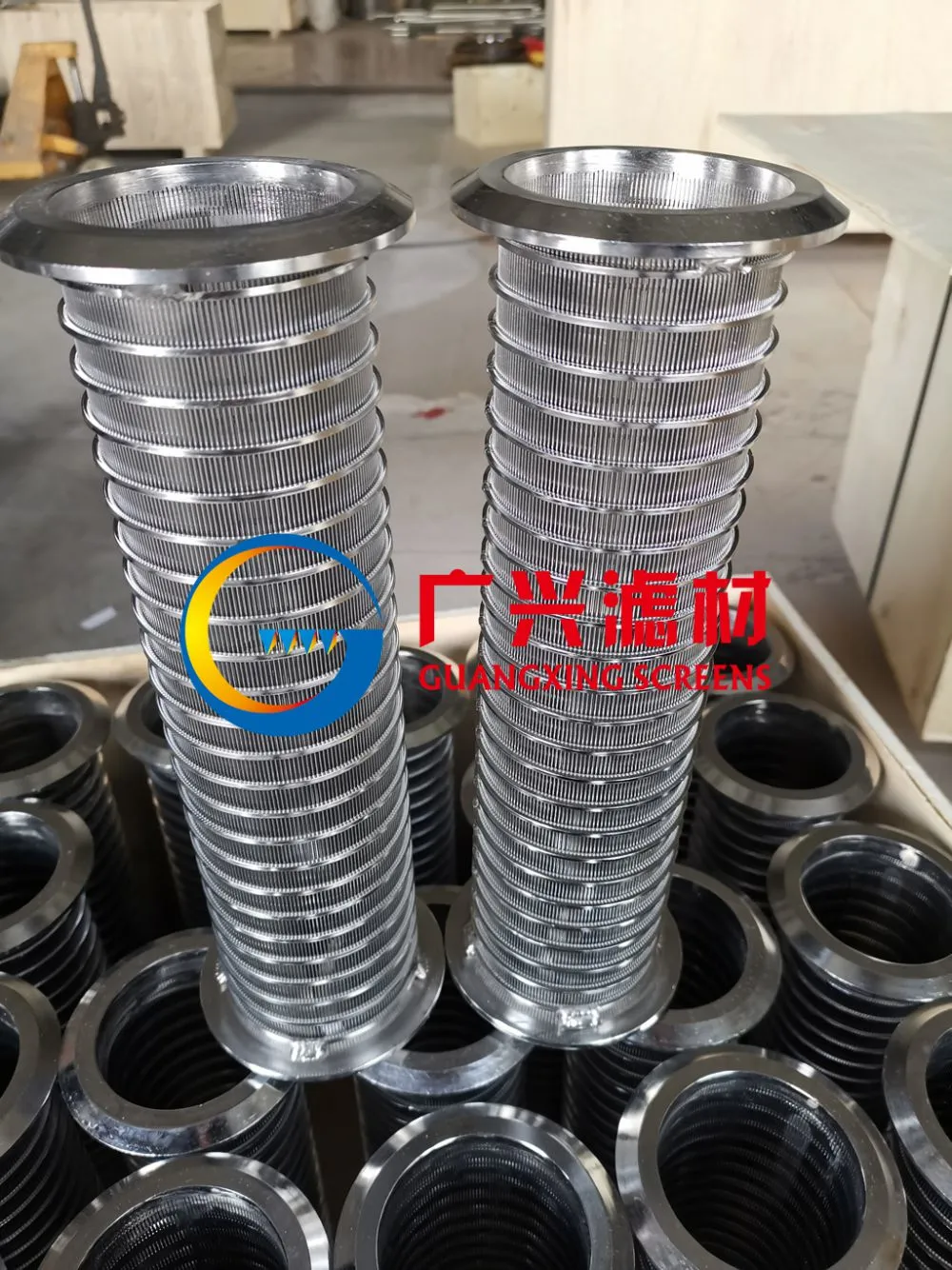

Wedge wire pipe:
230mm length
108mm ID
Bottom with 5mm blank flange
Top with 30mm width flange along circumference (5mm thickness)
2 mm slot size
We also supply:
1) E.C.W Wedge wire material.
Pipe shape
48"OAL 58V98R with 0.012" slots, 304SS construction,48" long
2) SS Wedge wire screen well pipe for the following sizes:
Range 50 NB to 300 NB (SS 304/304L/316/316L/LCG)
Note: Slit size will be from 50 micron to 1000 micron.
per meter basis with both end ACT API Coupling
3) wedge wire screen pipe
Diameter: 6" (150mm)
Sieve: 3mm
Length: 6 m ea
Material: SS316

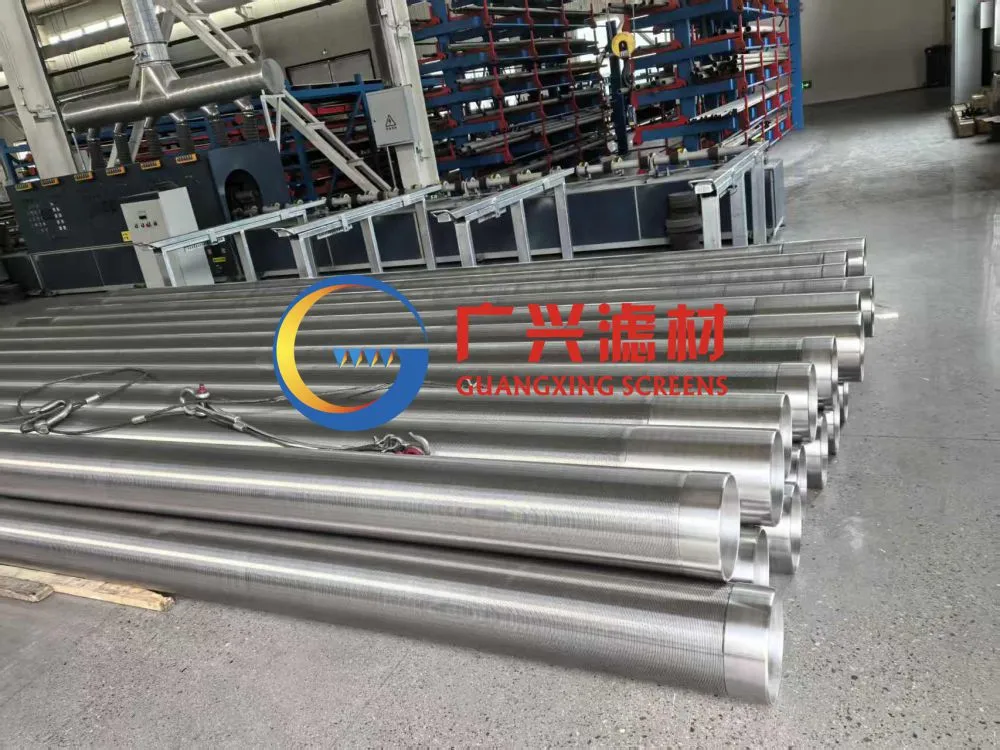

4) 8" Wedge Wire Pipe
Wedge Wire Pipe - diameter 8" - length - 3meters.
Slot opening size - 2 MM & 2.5 MM.
Material of construction - Carbon Steel & SS304.
