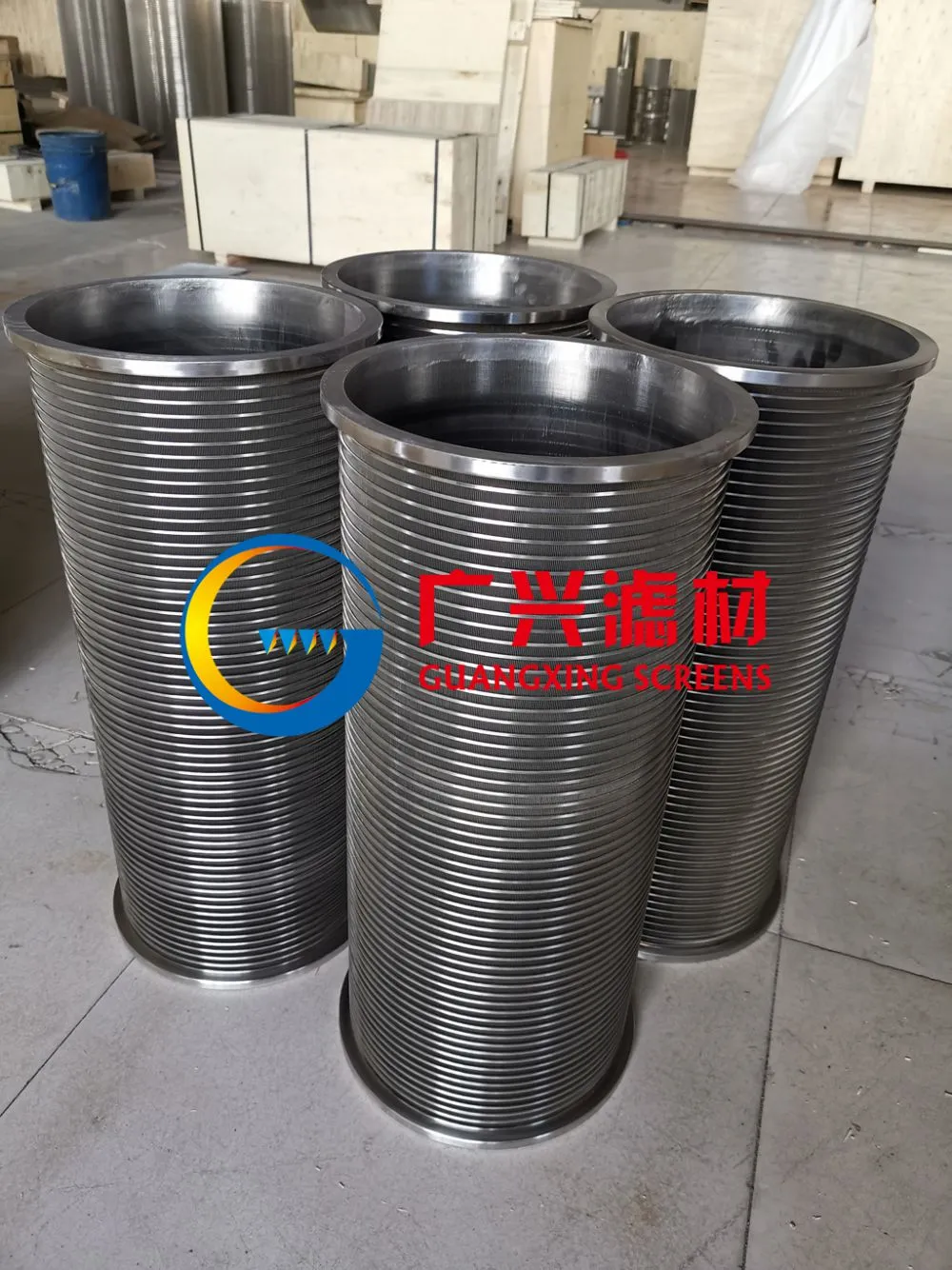

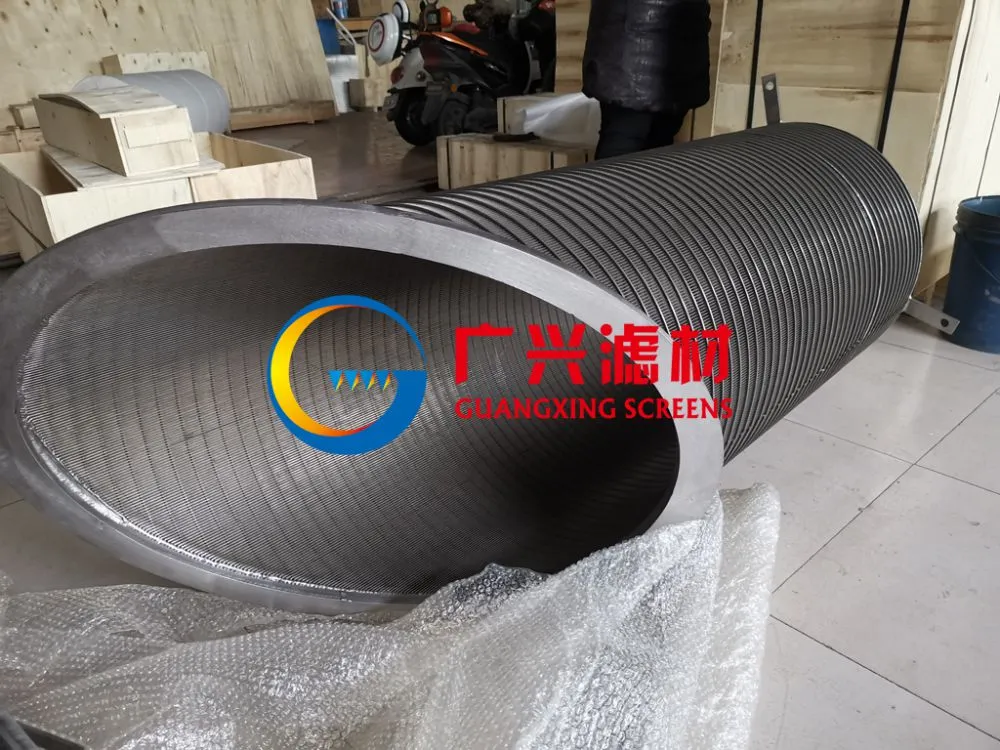

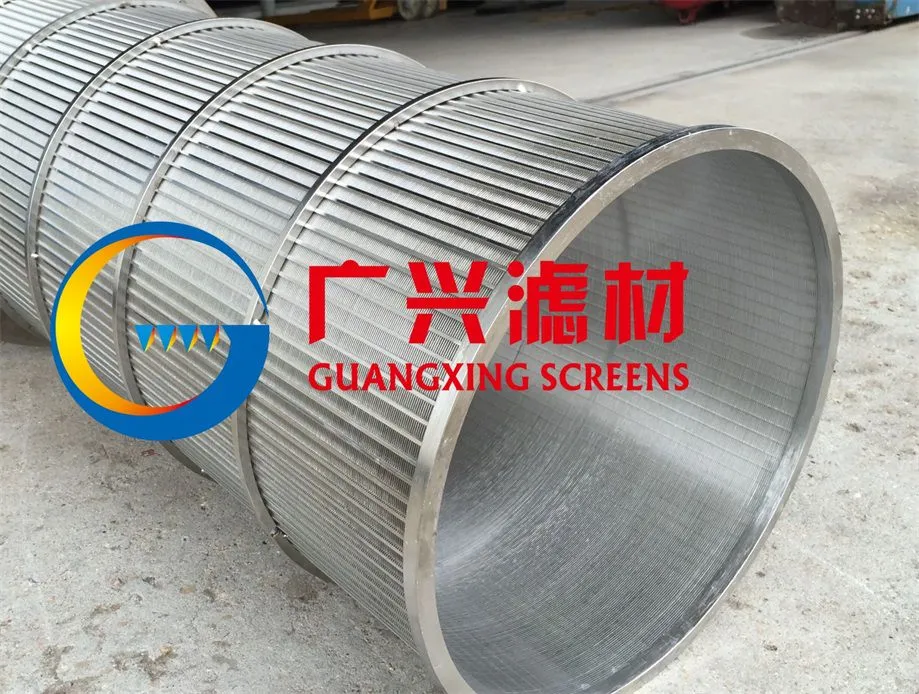

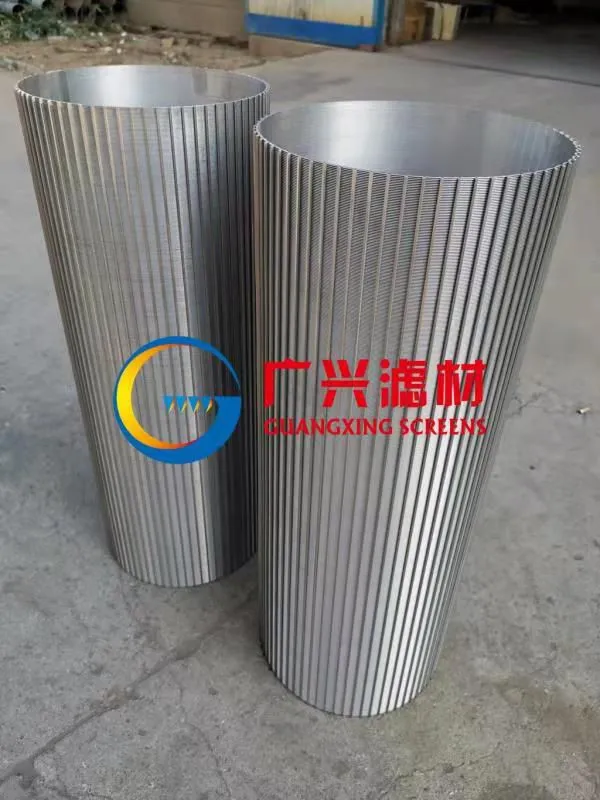

Hastelloy Wedge Wire Screen C276 0.5mm Slot, 0.63mm Slot, 25 Micron
Hastelloy Wedge Wire Screen is a filter element made from high nickel alloy suitable for sea water, acids and chemicals filtration systems. Hastelloy
Features and Uses:
Hastelloy (Hast C.) wedge wires feature high corrosion resistance, high strength, anti-clogging and long service life.
Hastelloy wedge wire screen costs higher compared with stainless steel screen, mainly used in marine, chemical processing and desalination projects.
Material: Hastelloy C276
Screen Type: Wedge wire cylinder
Screen Size: Outer diameter 60 mm × Length 800 mm
Slot size: 0.5 mm
Wire profile: 18SB (1.8 mm wide × 3.1 mm high)
Support rod: Q23 (2 mm wide × 3 mm high)
Rod Number: 22 rods
Supply to South Africa
Wedge Wire Screen Hastelloy C276
Wedge wire slot supply to India
MOC : Hastelloy C276
Outer Diameter(OD) : 70mm
Flow Direction: Out to In
Wire Profile: 100/ C20
Length: 1000 mm long
Slot Opening / Micron Rating: 25 Micron
Hastelloy Wedge Wire for Acid Washing
Acid Wash Column Nozzle Supply to South Africa
Hastelloy Wedge wire 0.63 aperture
Strainer flange, pipe, wedge wire:
All material to be stainless steel type Hasteloy type C276.
Wedge wire screens fabricated and welded according to drawing.
