2507 Super Duplex Wedge Wire Screen Cylinders for Seawater Intake Filtration in Desalination and Off

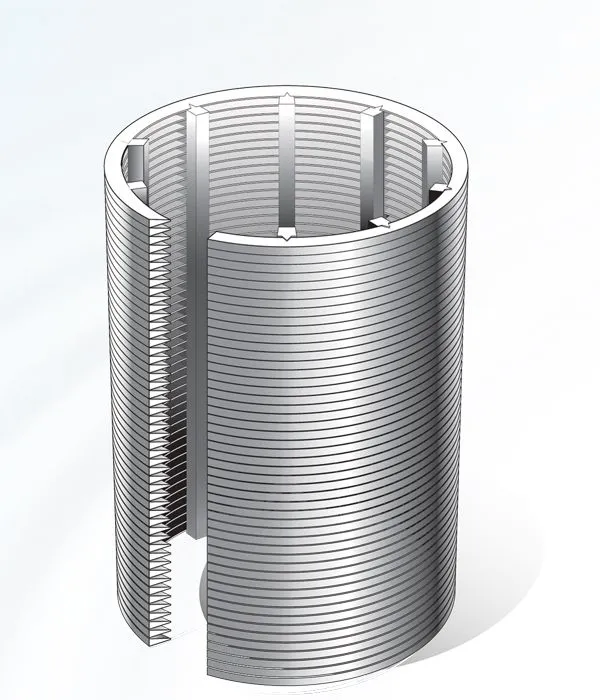

Duplex Stainless Steel Wedge Wire Cylinder is a kind of durable cylindrical filter screen made by welding V-shaped wires onto support rods to form continuous precise slot openings. Duplex stainless steel (typical duplex 2205, 2507) wedge wire cylinder offers high strength and excellent resistance to corrosion, especially in seawater and chloride-rich environments. Duplex ss wedgewire cylinder is stronger than 304 or 316 stainless steel, suitable for high-pressure and long-term use.

Uses: Super duplex wedge wire cylinders are widely used in oil & gas, petrochemical, desalination, sea water and pulp & paper industries. 2507 grade (Super Duplex Stainless Steel) wedge wire screens and cylinders are especially suitable in marine, desalination, and offshore oil & gas applications.

We produce duplex stainless steel wedgewire screen cylinders in customized specifications for customers around the world.

2507 Wedge Wire Screen Super Duplex Cylinders
Super Duplex Cylinders ( UNS S32750 ) 25.6 Inch Diameter ( 650mm ) x 37.5 Inch Long ( 950mm ) ( support Bar Direction ) Smooth Face Outside
0.024 Inch Slot ( 0.6mm ), 60/93H support Rods

Flat Panel ex Super Duplex ( UNS S32750 ) 80 Inch Long ( 2032mm ) x 40 Inch wide ( 1016mm ) ( Support Bar Direction )

36” X 96” Cylinder Wedge Wire Screen for Coastal Strainer

Flat side of wire facing inward
3/32” wire with .060” gap
Construction: Flat bar ends (or standard construction with solid plate with drive shaft end).
Material: 316 S/S, Alternative Super Duplex Stainless Steel

Wedge Wire Screen Cylinder made of SS Super Duplex Material
Degree of filtration:200micron
Diff. pressure max.
Outside to inside:4bar
Inside to outside: ax. 7,5 bar
Temperature: max.85°C
Remelt Liquore
Density:1300 kg/m3
Viscosity:20 CP
Material: Duplex ss, or SS304

0.012 Inch Slot ( 0.3mm ), 60/93H support Rods
Flat Panel ex Super Duplex ( UNS S32750 ) 80 Inch Long ( 2032mm ) x 40 Inch wide ( 1016mm )( Support Bar Direction )
0.02 Inch Slot ( 0.5mm ), 60/93H support Rods

Continuous Slot Wedge Wire Cylindrical Screen ( 316 SS) - used as Drum Screen Filter Element

Diameter 316 SS wedge wire disc ¼" openings on top of a cylinder
Cylindrical wedge wire screen built in 316L with approx. 500 mm diameter and 700 for manufacturing drum screen filter
Material: SS316, or Duplex

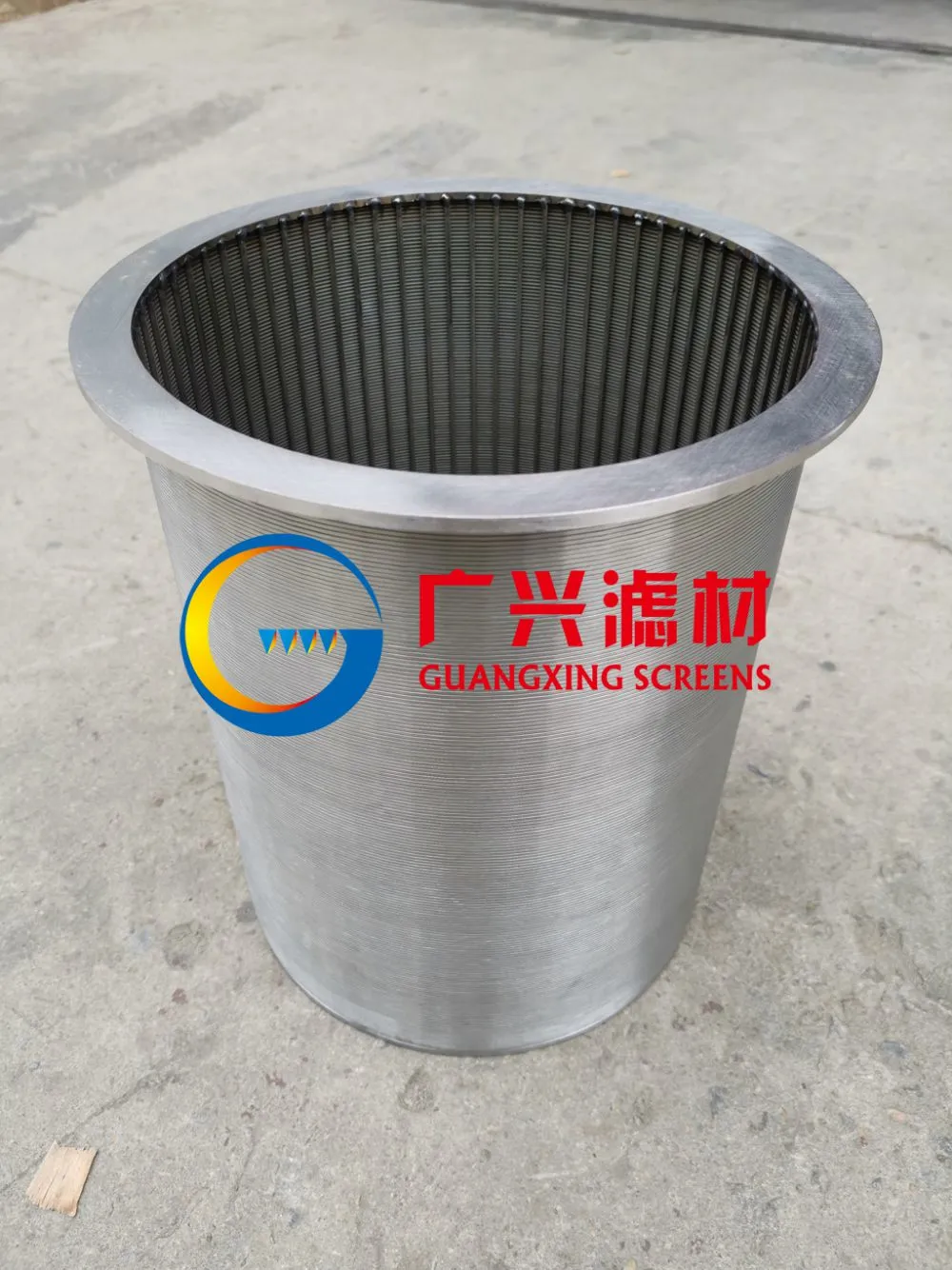

Wedge Wire Cylinder Hastelloy / Duplex
Size: 100mm diameter x 100mm long
Supplied with 150mm flange
Used as Wedge Wire Well Screen Pipes
