Stainless Steel 304 Wedge Wire Cylinder，316L Wedge Wire Cylinder for Water,Mining,Sugar Industry
Stainless Steel Wire Wrap Wedge Wire Filter Screen

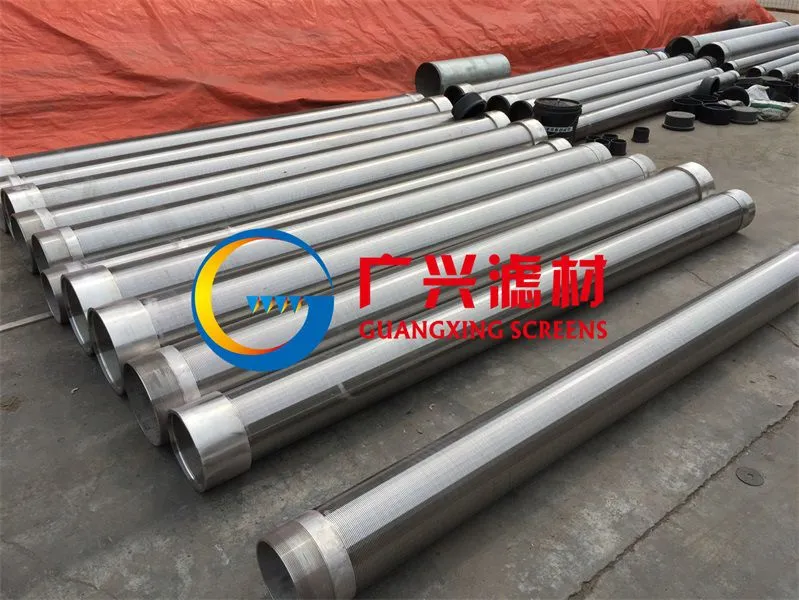

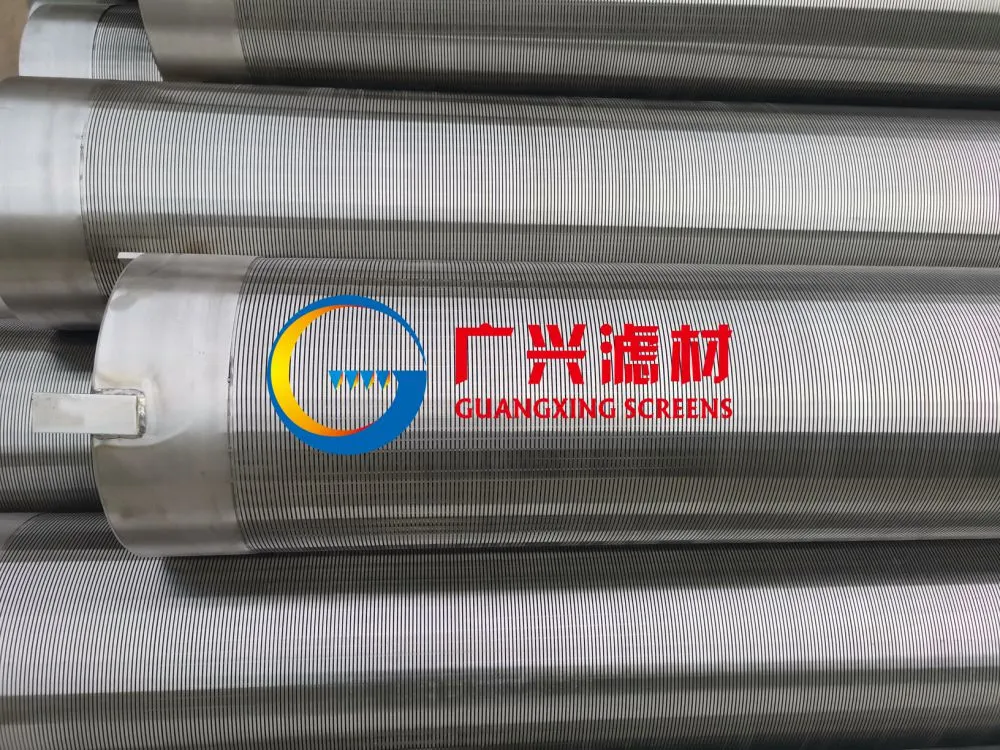

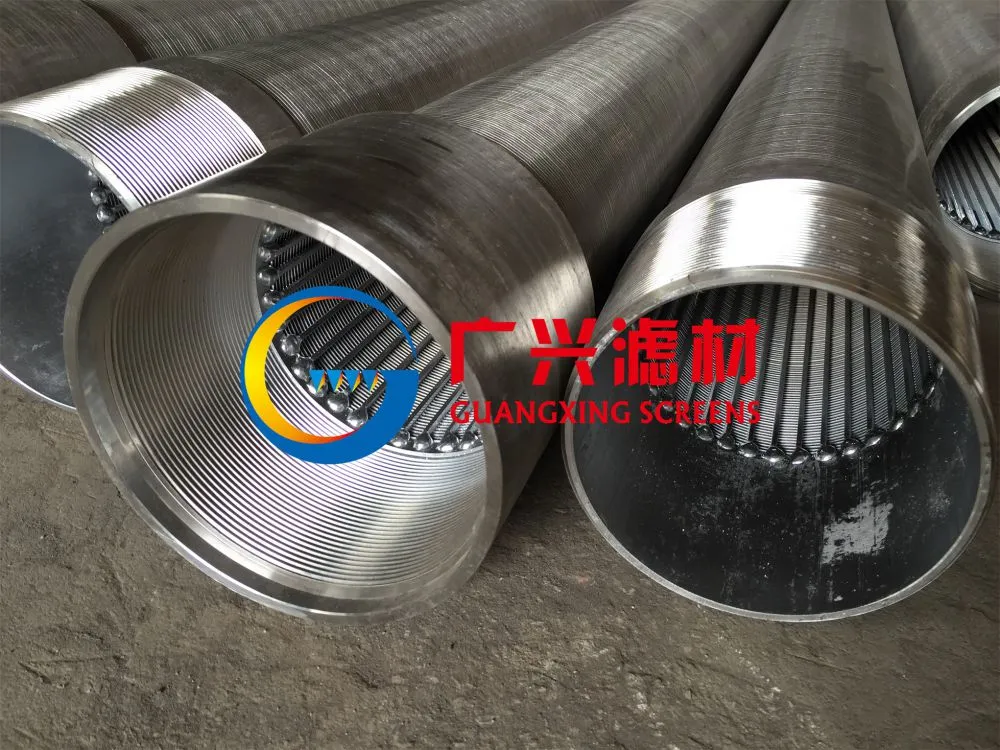

Wire Wrapping Wedgewire Screen is commonly made with inverted wrapped V wire (mostly stainless steel ) welded to the supporting ss bar or rod. This type of wedge wire screen is mostly supplied in the form of screens cylinders / tubes used as pipe base well screen.

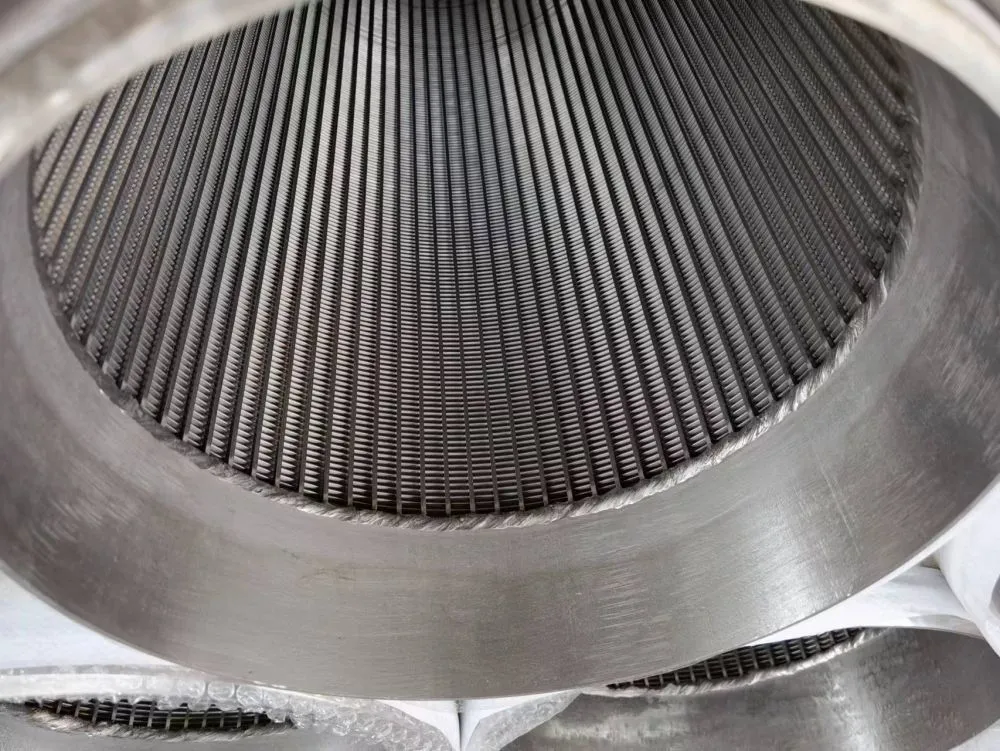

Screen Structures: The reversed wire rolled or wrapped wedge wire screen has the supporting rod outside of the filter cylinder or tube. This type of wedge wire screen goes from inside to outside, while another filter type is from outside to inside.
Material: Low Carbon Galvanized ( LCG ) and Stainless Steel (SS)
Slot size (mm): 0.05, 0.1, to 3.00..also achieved upon customer request.
Filtration Style: Fromoutside to inside.
Uses: Wire reversed wrapped wedge wire screen is mainly used for water well screens designed for depths of 100 m, 200 m, 350 m & 600 m,800m 1200m.
Advantages of using Wire Wrapping Wedge Wire Screens:
When compared to conventional slotted sand control pipe, wire wrapped wedge wire screens have superior open area due to their continuous slot openings. This has 4 major benefits:
. Reduce energy consumption and increase water flow.
. Reduce erosion of entry surfaces and increase well life.
. Allow a uniform and efficient well development.
. Reduce significantly potential pump damage and subsequent maintenance costs.
